Streamrun Editor

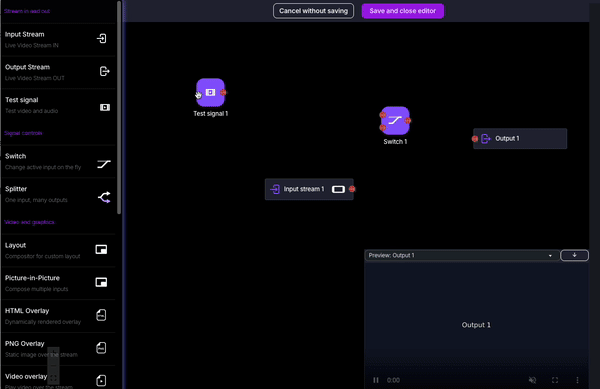

Streamrun editor The Streamrun Editor is the visual workspace for building and editing live stream configurations. It’s designed for desktop use and features a drag-and-drop interface that lets you add and connect Streamrun elements, with a real-time video preview shown in the preview window.

Editor Layout

The interface is divided into several key areas:

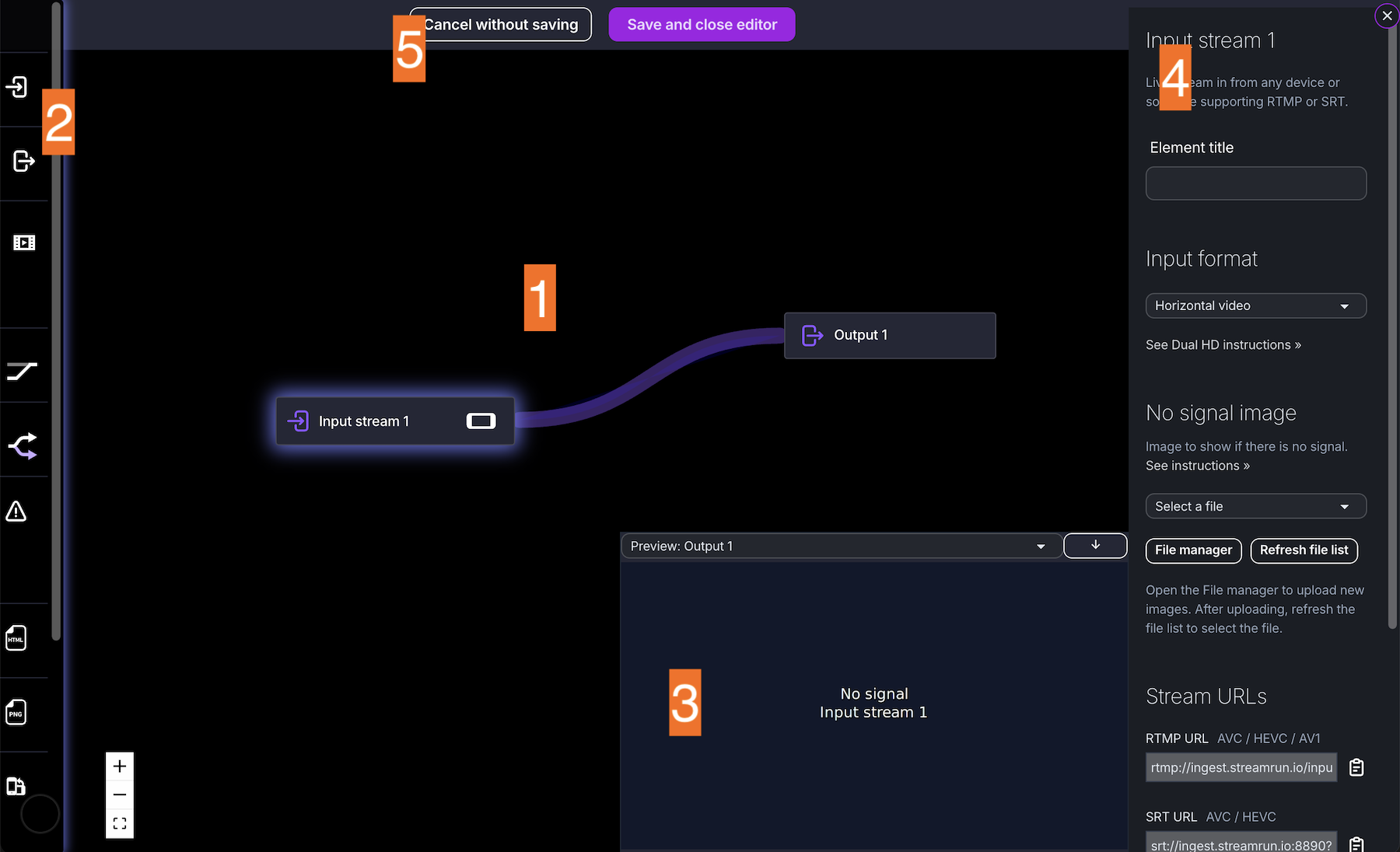

Streamrun editor layout

  1. Canvas (Center): Your main workspace. Drag in elements, arrange and connect them, then click to access settings or delete.
  2. Element Menu (Left sidebar): This is where you find all available elements (like video sources, overlays, or outputs). Drag from the sidebar onto the canvas to add them.
  3. Preview Window (Bottom right): Shows the live output of your configuration in real time. The preview starts when you add your first output element. If you have multiple outputs, choose which one to view from the dropdown. Learn more about Preview video and Streamrun mode.
  4. Element Settings (Right sidebar): Select any element on the canvas to open its settings here. Adjust settings and see updates instantly. Changes save automatically.
  5. Top Bar: Use the buttons at the top to exit the editor or change the mode to RUNNING for live broadcast.

Deleting elements and connections

To delete elements or connections, click to select them, then press Delete or Backspace key on your keyboard.

Managing configuration while streaming

Even though with the Editor you can adjust your setup in real time, preview changes instantly, and update elements such as inputs, overlays, or video players during the broadcast, it’s primarily meant for building reusable configurations offline. The Editor is designed for desktop use, and its interface is not optimized for controlling the stream while live.

The Remote Control is meant for use while streaming. It’s optimized for mobile and quick on-the-go changes, whereas the Streamrun Editor serves as your complete workspace for planning, editing, and managing live streams.
